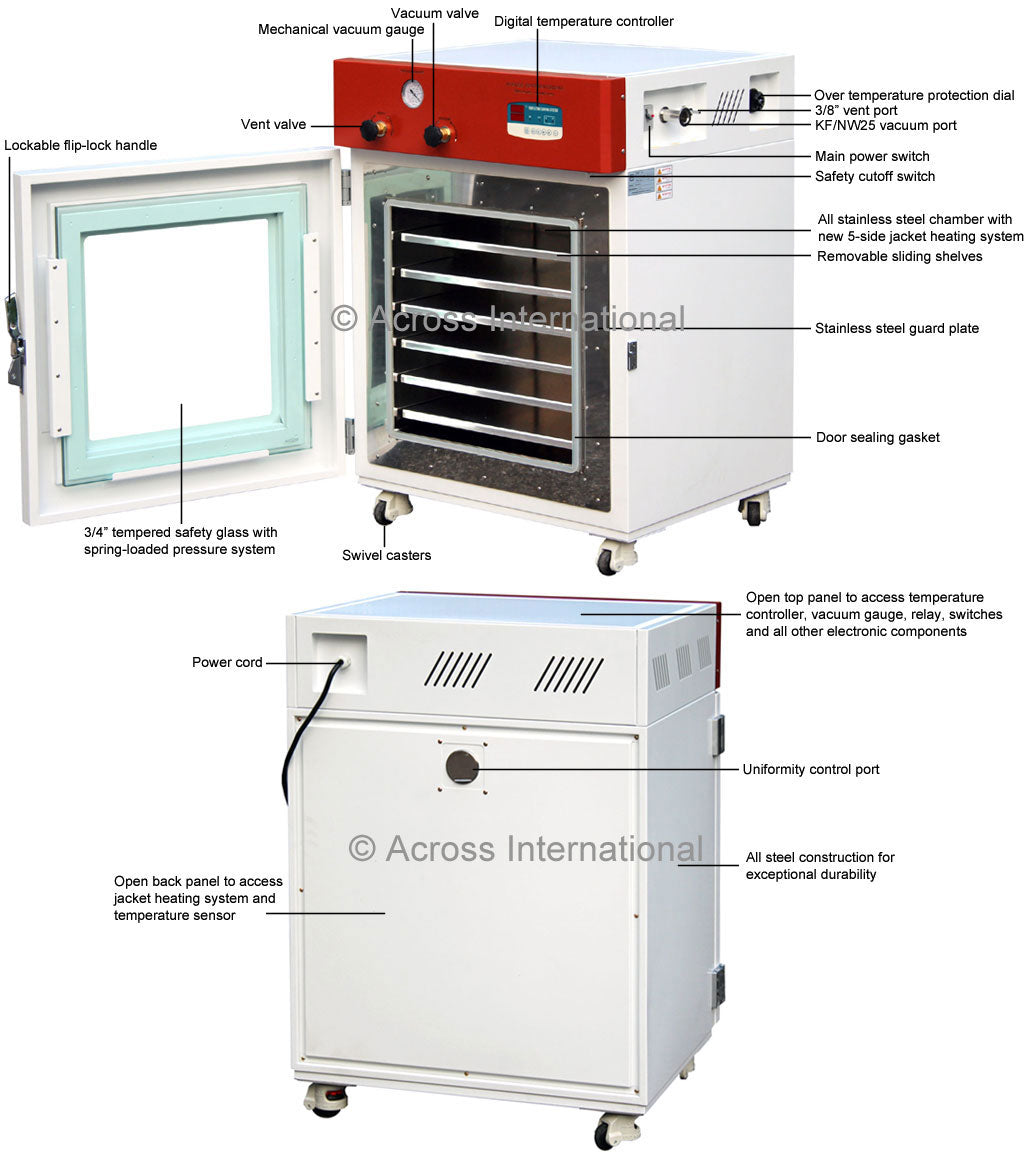

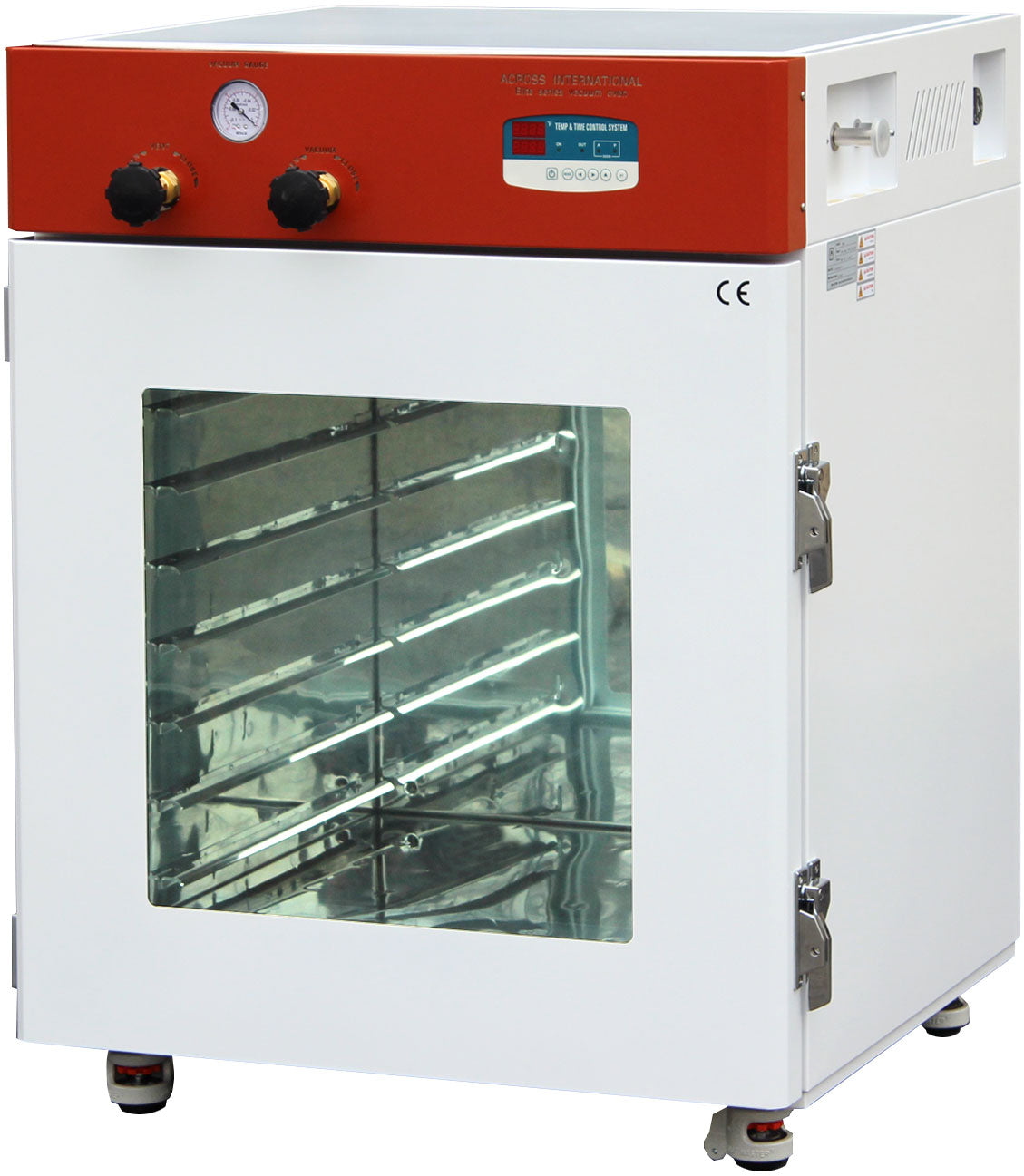

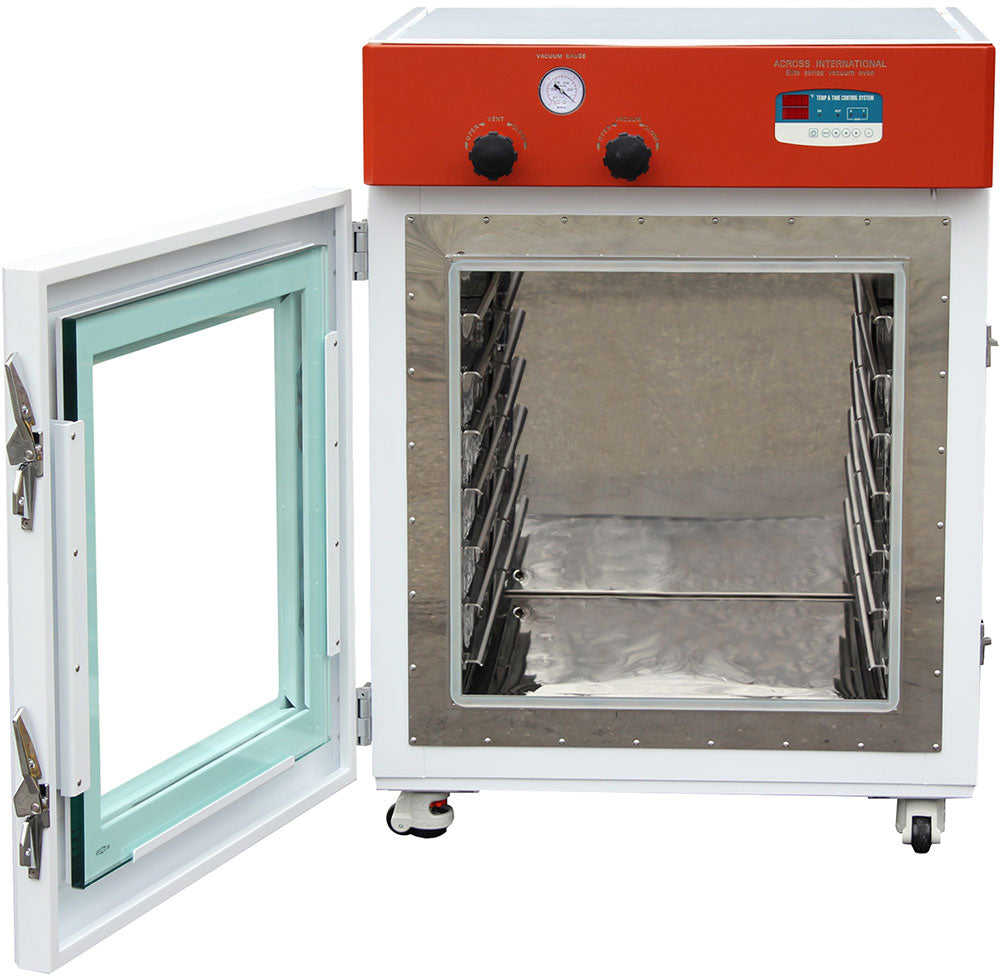

Across International UL CERTIFIED 7.6 Cu Ft 24x24x24" Vacuum Oven w/7 Aluminum Shelves

More pictures and information available upon request. All equipment comes from a clean, regulated facility and hasn’t been used with pesticides at any time.

Features

  • Re-designed 5-side jacket heating system covers left, right, up, down and backside of the oven, it provides perfect temperature uniformity and fast heating rates.
  • All stainless steel internal vacuum tubing and compression fittings that holds vacuum 10 times longer and deeper than with rubber tubing. They also provide you the most sanitary working environment, while last for decades without maintenance.
  • Built-in secondary over-temp dial for added protection.
  • Exceptional build and finish quality.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • Adjustable gas back fill capability via vent port
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • Built-in swivel casters with locks for ultra portability.

Vacuum oven specifications

 Electrical requirements
 220V +/-10% 50/60Hz single phase 20.5A, 4500 watts
 No plug included, customer will need to install plug base on their power setup
 Temperature control  Controller: Low gain microcomputer PID control for heater output
 Temperature range: Ambient to 200°C
    UL units can only be certified up to 150°C
 Timer range: 0 to 99 hours 59 minutes
 Chamber
 Dimensions: 23.6 x 23.9 x 23.6"
 Capacity: 7.6 cubic foot (215 liters)
 Material: Polished heavy duty type 304 stainless steel
 Heating method: 5 sided heated jacket
 Dimensions (WxDxH)  Unit: 34 x 32 x 45"
 Shipping: 43.5 x 41.5 x 52"
 Weight  Unit: 620 Lbs
 Shipping: 880 Lbs
 Vacuum
 Level: Better than 500 microns/millitorrs
 Vacuum port: KF25 flange
 Vent port: 3/8" hose barb
 Shelf
 Included: 7 aluminum slide-in shelves
 Shelf size: 23 x 23 inches
 Total area: 529 x 7 = 3703 inch2
 Distance between shelves: 3.25 inches
 Door gasket material  Silicone
 Safety  Built-in safety switch
 Circuit breaker
 Overheat protection
 Power failure auto reset
 Time up buzzer
 Observation window  1/2" tempered safety glass
