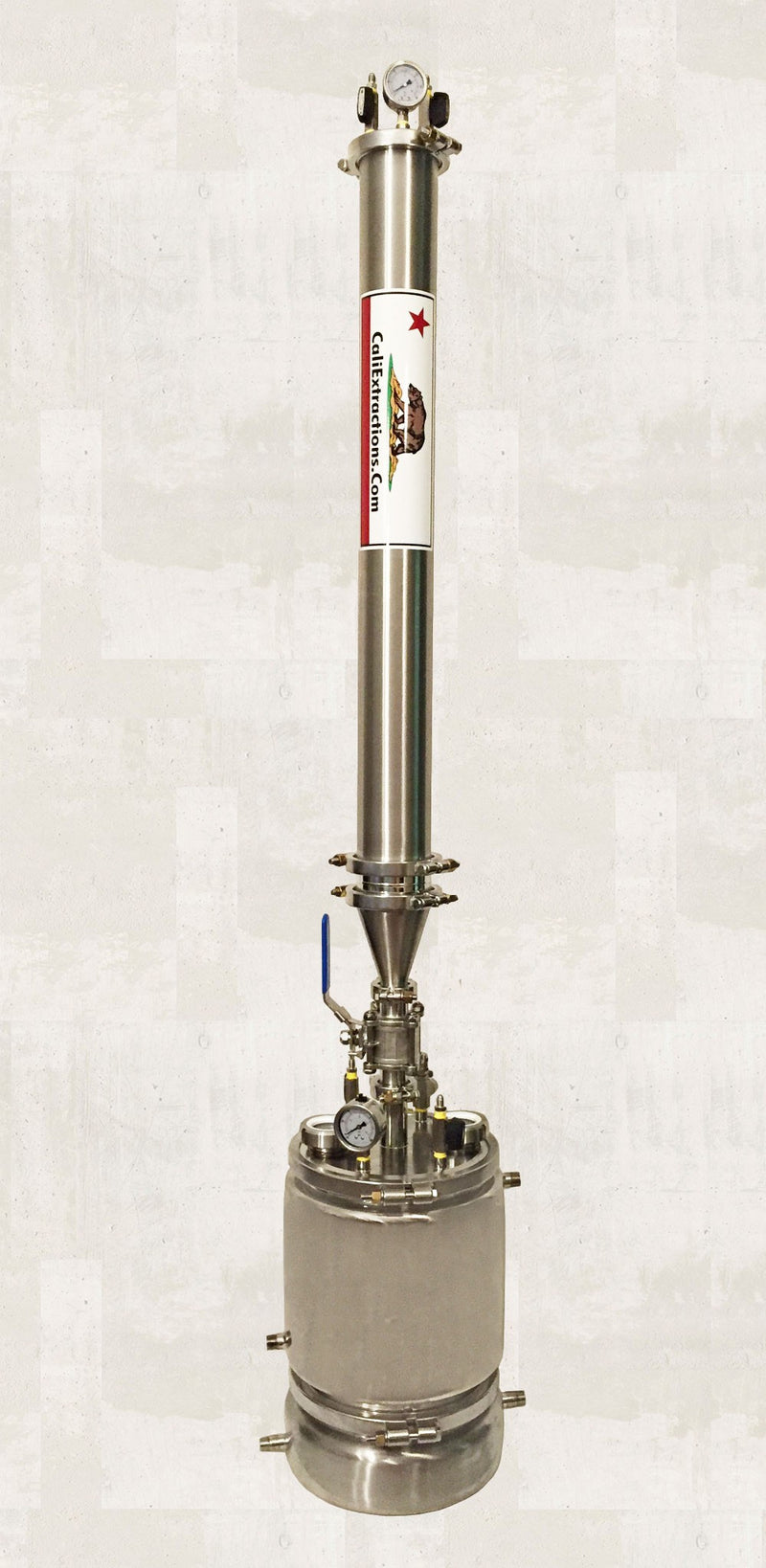

5LB Jacketed Closed CaliLoop Extractor

5LB Jacketed CaliLoop Stainless Steel Extractor
Jacketed CaliLoop Fully Certifiable Stainless Steel Closed Loop extractor system. Our collection pots are designed with the active professional in mind. Fully jacketed collection pot and jacketed shatter platter for quick and easy cooling/heating. Each system comes standard with 2 sight glasses, 0-250 psi pressure relief valve, isolating ball valves for better control, dewaxing filter sections, stainless steel oil filled gauges, and stainless mesh gasket. The material column is 4" by 48" for 5 pounds of capacity. Our included DOT certified 50 pound solvent tank is perfect for washing and recovering solvent from your material. Suggested Solvents are R-600, R-600A, R-290, or a custom blend of the three. This assembly is not designed for CO2 or Alcohol washing. Through closed loop extraction you can recover up to 99% of solvents!

CaliLoop Extractor System includes:

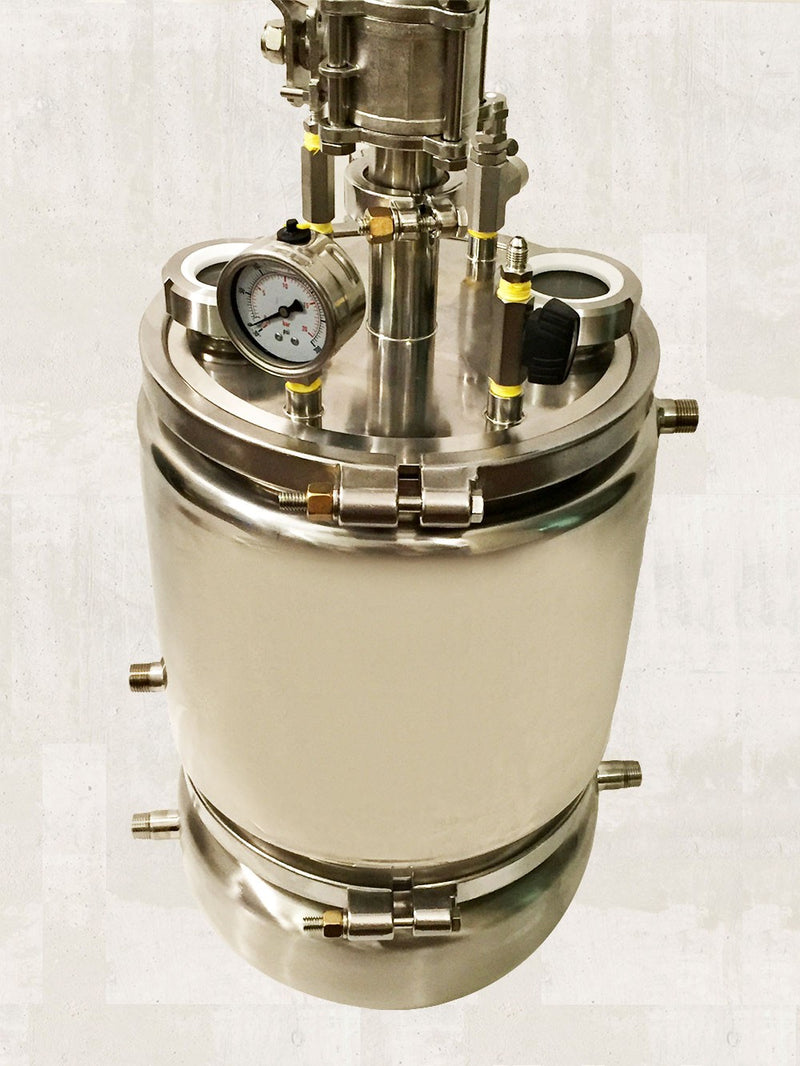

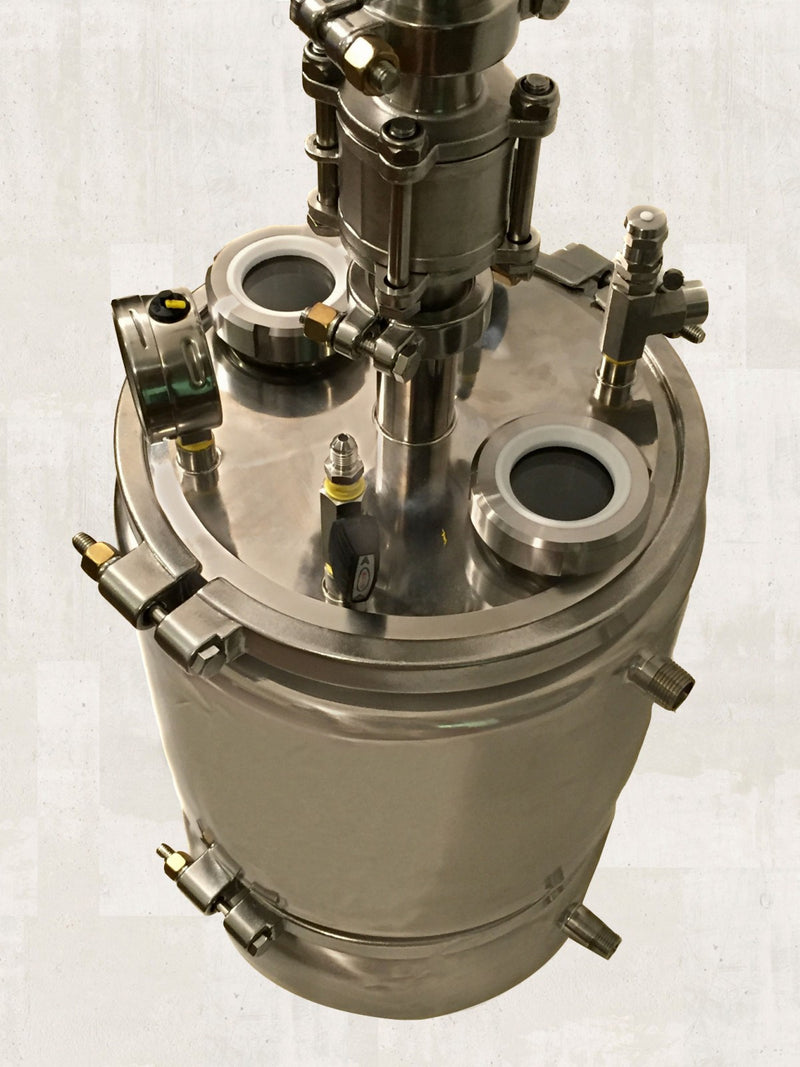

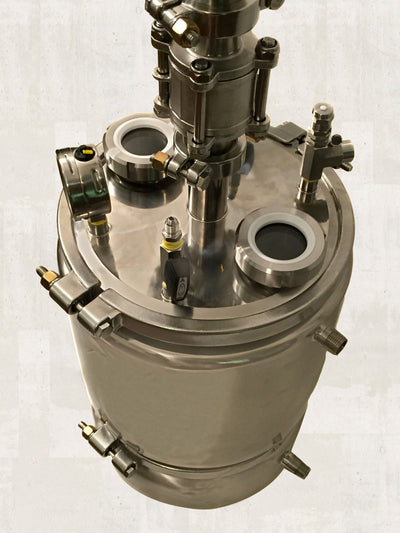

  • 10" x 12" Jacketed Collection Tank with 1/2" male inlet and outlet.
  • 10" x 4" Jacketed Shatter Platter with 1/2" male inlet and outlet.
  • 5 pound column (4"x48") including reducers and attachments
  • 1 (0-250) Pressure Relief Valve.
  • 2 Shut-off Valves on Collection Pot for Quicker Recovery.
  • 1 1/4" Shut-off Valve for Nitrogen Assist.

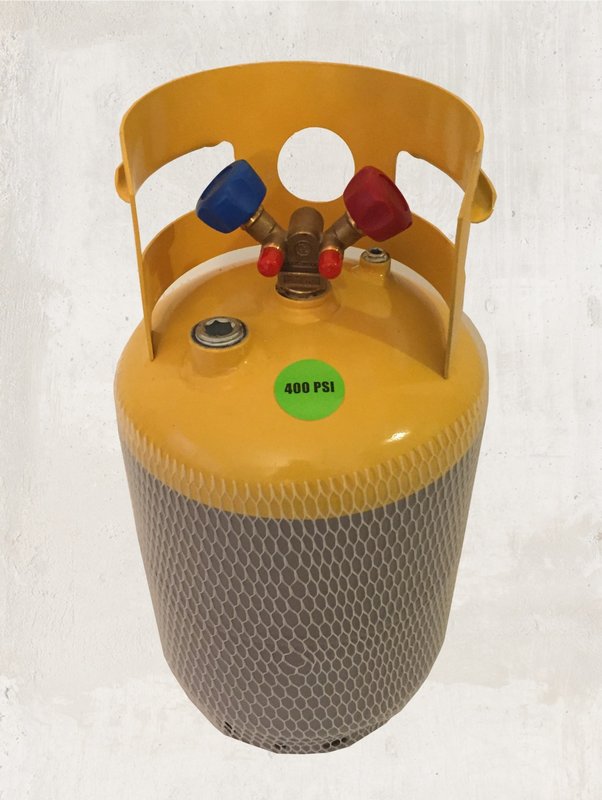

  • 50 pound Recovery Tank
  • 2 1/4" 48 inch Hoses
  • 1 1/4" 72 inch Hose
