$3,300.00
* UL certification NOT available for the 230V model

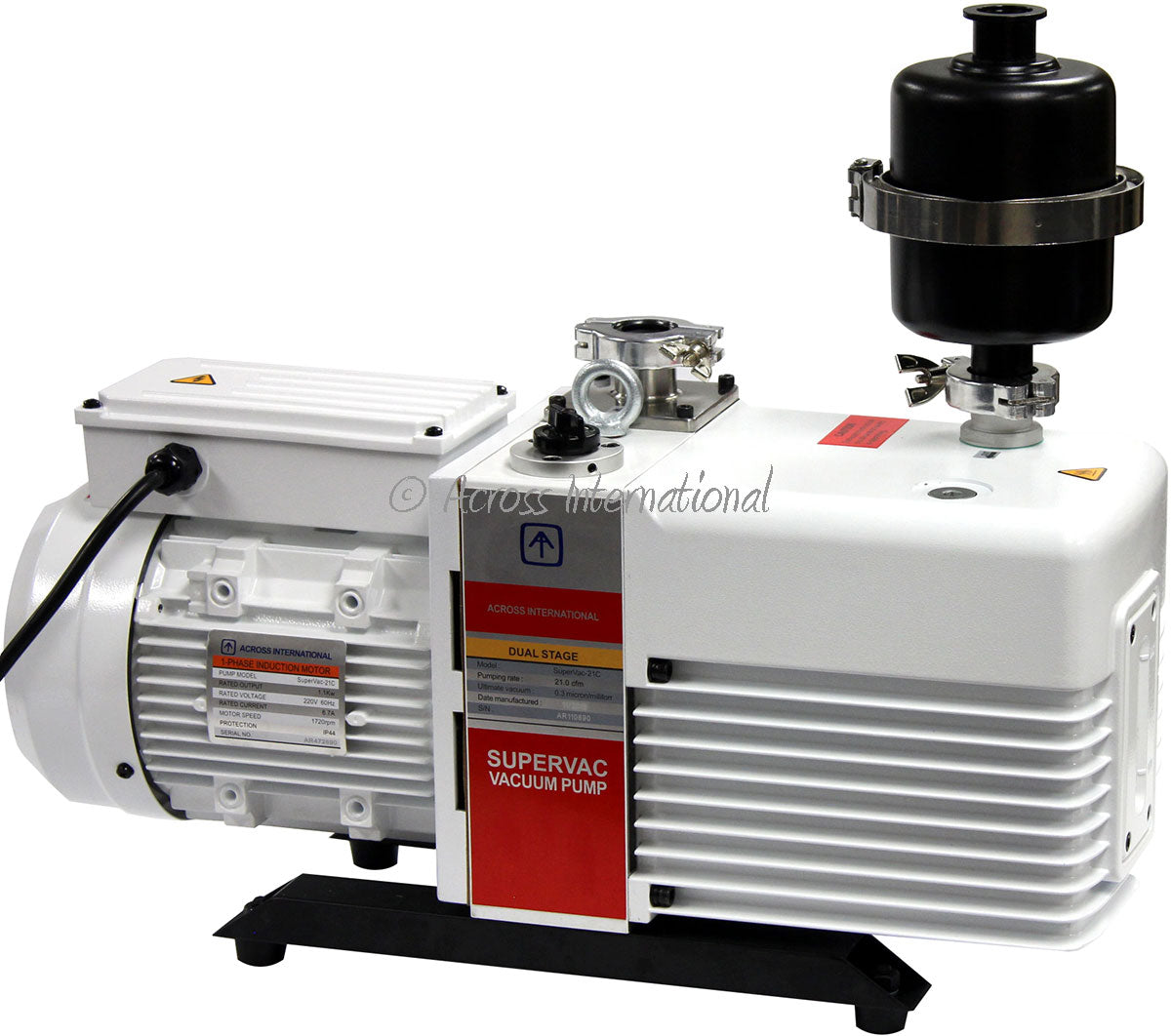

The newcorrosion resistantAi SuperVac 21 cfm commercial grade vacuum pumps are now UL/CSA certified (115V model), this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan.These pumps are designed for reliable long time continuous operation, they will take your equipment's vacuum down to 0.3 micron in minutes. Comes standard with all necessary fittings and a high capacity exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run.
Multi-level gas ballast is designed to allow purposefully pull a less deep and slower vacuum by opening the gas ballast, allowing dry air to go directly into the pump and diluting the vacuum pull, and it also helps keep moisture, solvent, and other contaminants from getting stuck in the pump, and instead passing through to the exhaust.
It is important to note that pumps should always be ran in a well ventilated area.
Features
Specifications
Electrical requirements |
115V 60Hz or 230V 50/60Hz single phase, 1100 watts |
Pumping rate |
21 cfm |
Ultimate vacuum without gas ballast |
0.3 micron/millitorr |
Ultimate vacuum with gas ballast |
6 micron/millitorr |
Inlet/outlet connection |
KF25/NW25 flange |
Oil volume |
2 liter / 2.1 quart |
Motor rate | 1715 rpm |
Working temperature | 5 to 40°C |
Unit/shippingdimensions (LxWxH) |
21x7.5x12" / 37x10x17" |
Unit/shipping weight |
80 Lb / 98 Lb |
Recommended oil | Ultra-grade 19 |
Noise level | < 58 dB |
Warranty | Two years |
Download | Product brochure |
Compliance |
UL (E500328), CSA, CE |
