$16,000.00

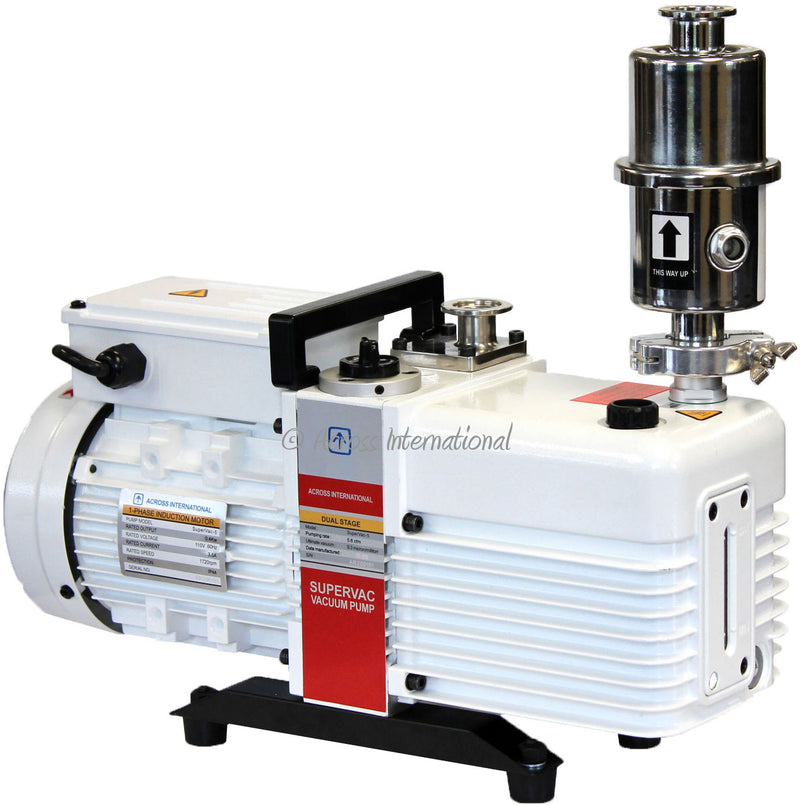

The new Ai SuperVac-5C 5.6 cfm commercial grade vacuum pump now come standard with UL/CSA certified, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. These pumps are also corrosion resistant and 115V/230V 50/60Hz switchable, backed by our 2-year warranty.
Ai SuperVac-5 dual-stage vacuum pump will take your vacuum down to 0.3 micron in minutes. These pumps are designed for reliable long time continuous operation. Comes standard with all necessary fittings and a high capacity exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run.
Adjustable gas ballast is designed to allow purposefully pull a less deep and slower vacuum by opening the gas ballast, allowing dry air to go directly into the pump and diluting the vacuum pull, and it also helps keep moisture, solvent, and other contaminants from getting stuck in the pump, and instead passing through to the exhaust.
It is important to note that pumps should always be ran in a well ventilated area.
Features
Specifications
Electrical requirements |
115V or 220V switchable, 50/60Hz single phase, 370 watts |
Pumping rate |
5.6 cfm |
Ultimate vacuum without gas ballast |
0.3 micron/millitorr |
Ultimate vacuum with gas ballast |
6 micron/millitorr |
Inlet/outlet connection |
KF25/NW25 flange |
Oil volume |
1 liter / 1.06 quart |
Motor speed | 1450 rpm (50Hz) or 1720 rpm (60Hz) |
Working temperature | 5 to 40°C |
Unitdimensions (LxWxH) |
17 x 6.75 x 9.75" or 17 x 6.75 x 16" (with filter) |
Shipping dimensions (LxWxH) | 23 x 8.5 x 13" |
Unit weight |
47 Lb |
Shipping weight | 55 Lb |
Recommended oil | Ultragrade 19 |
Noise level | < 56 dB |
Warranty | Two years |
Download | Product brochure |
Compliance | UL (E500328), CSA, CE |
