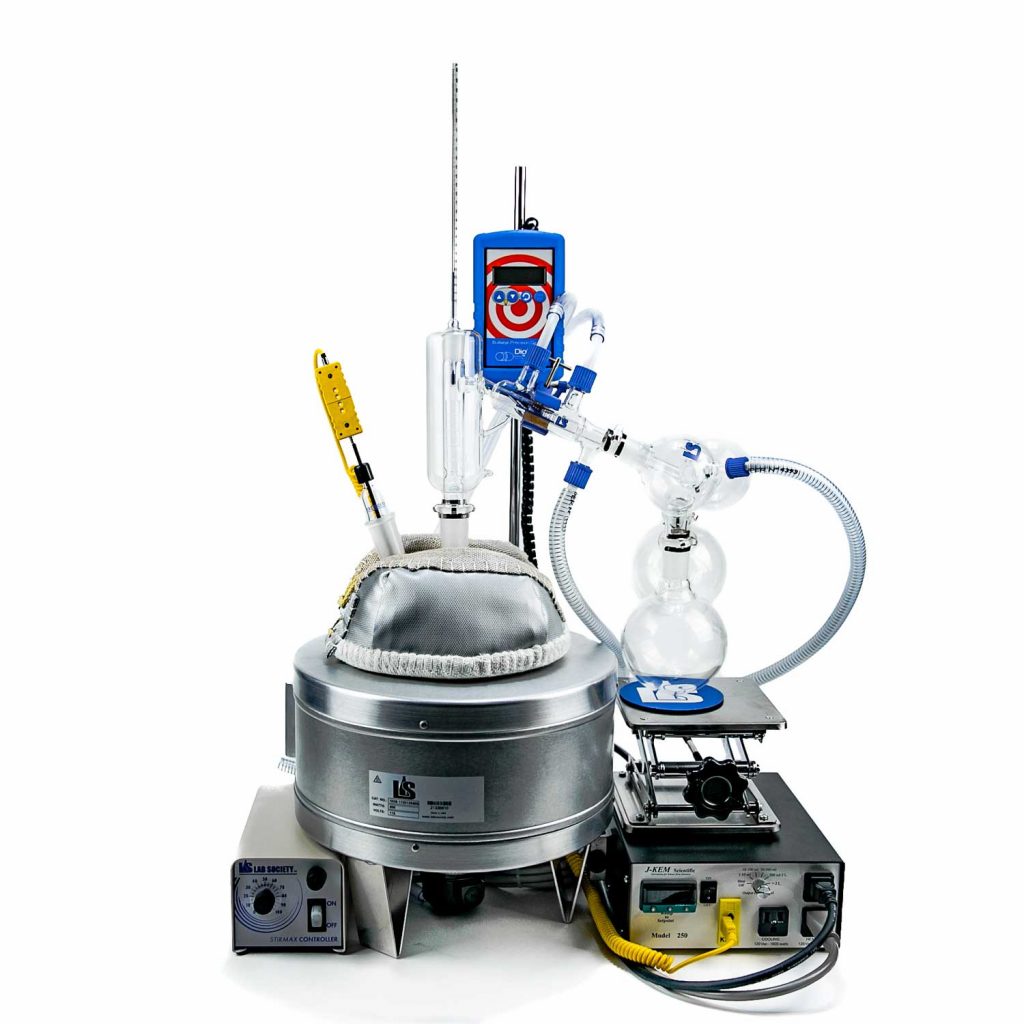

Lab Society G2 Executive Short Path Distillation Kit (2L)

$6,995.00

The two-liter (2L) Lab Society Executive Series Short Path Distillation unit is the most comprehensive and integrated benchtop-scale short path distillation kit on the market. This complete turn-key system includes all stands, clamps, hoses, connectors, and accessories necessary to perform distillations efficiently and with ease. Lab Society’s patent pending glassware designs are built to simplify the distillation of higher boiling point compounds. The short path distillation system also includes material transfer tools, cleaning tools, and extra setup parts to allow the user to configure the system to fit their laboratory’s needs.

In addition to ease of access, the 2L short path distillation kit also utilizes a J-KEM temperature controller for process control. This unit is compatible with J-KEM’s KEM-Net freeware (download linkhttp://www.jkem.com/software/) which allows the user to easily control the unit from a windows-based PC while utilizing data logging, ramping programs, and/or I/O alarms. When paired with the 2L LS Vapor Temperature Monitoring Kit, the user can utilize real-time graphing/logging of both of the distillation heads and the boiling material temperature on the same screen and graph. Not only does this allow for future automation and programming of temperature ramps, but also eases the use of the 2L short path distillation unit.

System Specifications

Batch Capacity: 1000mL (approx. 1100g dewaxed oil)

Optimum Capacity: 400-800mL

Batch Duration: 4-8 Hours (Estimated)Batch Durations are dependent upon primary extraction method, pre-processing methodology, and material composition.

Benchtop Size: 20” x 26” x 24” (not including pump/trap/circulator)

Options for Distillation Heads: V2 Standard, V2 Silvered, or PDH-1

American-made Glassware and Controllers

System Requirements

VACUUM PUMP

Pair with: 1400B-01, 2070B-01, 3041-01, 3061-01, 3081-01

Min. Ultimate Pressure: 150 micron/mTorr

Free Air Displacement: Min. 0.9 cfm, Max. 5 cfmModified configurations may utilize 5-12 cfm (utilize at own risk; we are not liable if issues/damages occur)

VACUUM/COLD TRAP

Pair with: LS-CTK-C, T40, T80

Manual: Dry ice with isopropanol or acetone; immersion or Dewar style

Mechanical: Maximum -40C; Lowest Possible Temp. is recommended.

Note: If a vacuum trap is approx. -100C (-150F), oxygen can condense to a liquid under deep vacuum pressures. This can create potential explosive situations. Lab Society does not recommend running vacuum traps at or below these temperatures.

LIQUID CIRCULATOR

Pair with: LS-BTK-4C, LS-BTK-8C, MA-4, MX07H135

Min. Temperature:32C

System And Electrical Parameters

Heating Mantles: 700w, 6 amps, 115V

Max. System Temperature: 260C (PTFE/PFA Temp. Limit)

Stirring Motor: 18w, 100-120V

Speed Range: 100-1500 rpm

Vacuum Monitoring: 15W, 100-120V

Range: 0.7 mTorr to 800 Torr

Certifications

Heating Mantles: CSA / NRTL

Controllers: RoHS / CE / NRTL (Constructed with 100% UL and CSA listed parts)

Stirrer: EN / UL / CSA / NRTL

Vacuum Gauge: RoHS / CE / NRTL

Glassware: Meets ASTM specification E438, Type 1, Class A, and is made from Kimble Kimax or Schott Duran glass

What’s in the Box?

LS Distilling Head

Vapor Thermometer for Head

LS Distribution Adapter

250ML Receiving Flasks (3)

500ML Receiving Flasks (2)

2L LS Round Bottom Flask

2L Heating Mantle Bottom

2L Heating Mantle Top

Magnetic Stirrer w/ Heat Plate

Double Output Temperature Controller

Thermocouple

Ring Stand

Retort Clamps (2)

Lab Jack 6x6

Chain-link RBF Tool w/ Adapter

Powder Funnel

Heat Gun

Vacuum Grease

All Hoses, Clamps, and Connectors
