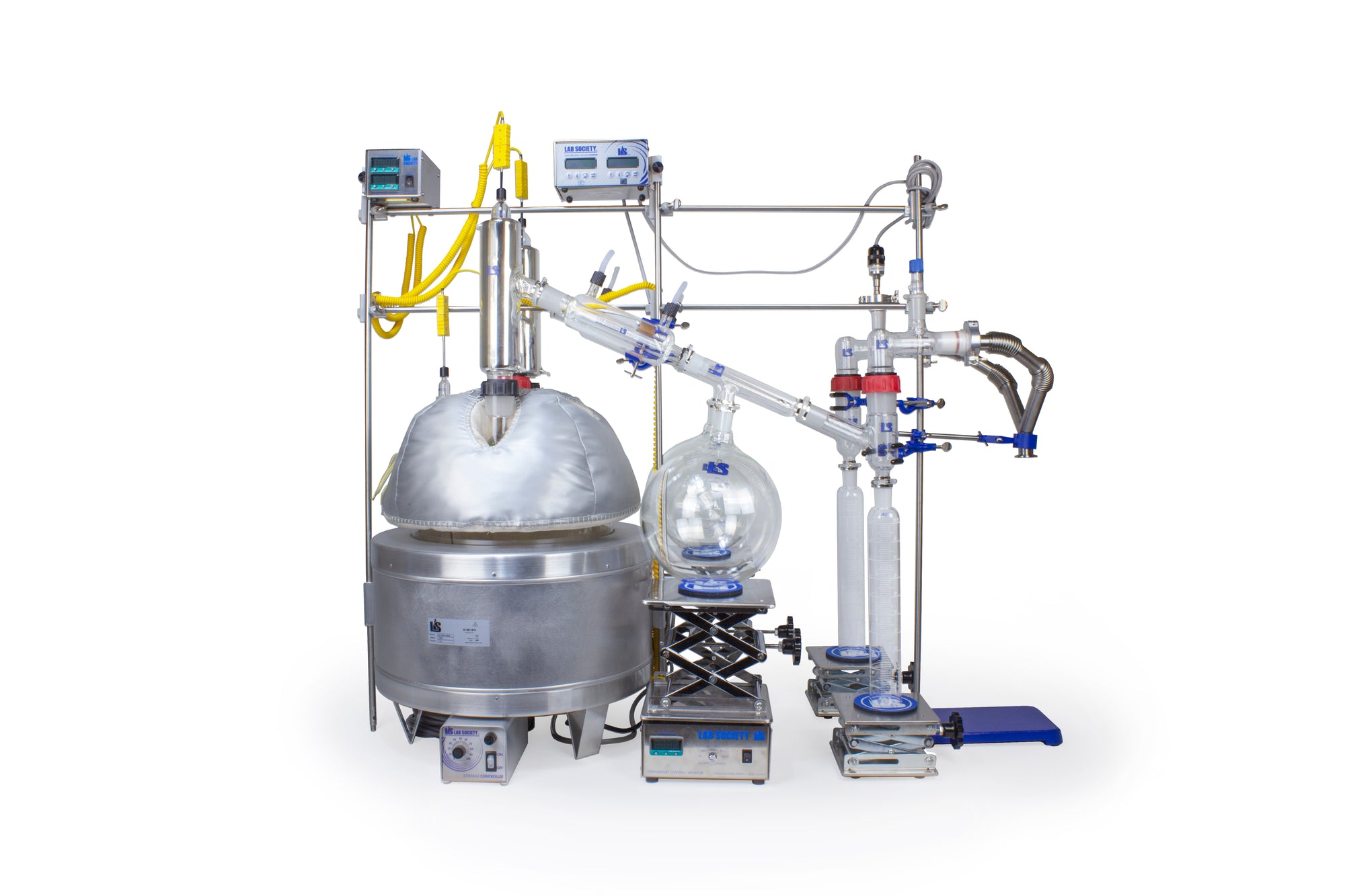

Specifically designed to increase production capacity, the Lab Society Executive 5 Liter Short Path Distillation Kit is a comprehensive answer to increasing production efficiency along with product availability – without sacrificing quality.
Utilizing a custom five (5) liter stirring mantle system, the Executive 5L short path distillation kit allows the user to perform full distillations on batch sizes up to 3000mL* in similar run times as smaller systems. This is possible because the 5L flask features two (2) Lab Society Distillation heads running simultaneously to more than double** flow rates comparatively to single-headed systems. This complete system includes all stands, clamps, hoses, connectors, and accessories necessary to perform distillations efficiently and with ease. The system also includes material transfer tools, cleaning tools, and extra setup parts to allow the user to configure the system to fit their laboratory’s needs.
In addition to ease of access, the 5L short path distillation system also utilizes a J-KEM temperature controller for process control. This unit is compatible with J-KEM’s KEM-Net freeware (download link:http://www.jkem.com/software/) which allows the user to easily control the unit from a windows-based PC while utilizing datalogging, ramping programs, and/or I/O alarms. When paired with the 5L-Specific LSVapor Temperature Monitoring Kit (LS-VTK-D), the user can utilize real-time graphing/logging of both of the distillation heads and the boiling material temperature on the same screen and graph. Not only does this allow for future automation and programming of temperature ramps, but also eases the use of the 5L short path distillation unit.
Batch Capacity: 2500mL (approx. 2750g dewaxed oil)
Optimum Capacity: 800-1500mL
Absolute Max. Capacity: 3000mL (approx. 3300g dewaxed oil)
Batch Duration: 4-8 Hours (Estimated) Batch Durations are dependent upon primary extraction method, pre-processing methodology, and material composition.
Benchtop Size: 30” x 38” x 30” (not including pump/trap/circulator)
Options for Distillation Heads: V1, V1 Silvered, V2, or PDH-1
American-made Glassware and Controllers
Pair with: 2070B-01, 3081-01, nXDS10iC, RV5, RV8
Min. Ultimate Pressure: 150 micron/mTorr
Free Air Displacement: Min. 5 cfm, Max. 12 cfm Modified configurations may utilize 12-20 cfm (utilize at own risk; we are not liable if issues/damages occur)
Pair with: LS-CTK-C, T40, T80
Manual: Dry ice with isopropanol or acetone; immersion or Dewar style
Mechanical: Maximum -40C; Lowest Possible Temp. is recommended.
Note: If a vacuum trap is approx. -100C (-150F), oxygen can condense to a liquid under deep vacuum pressures. This can create potential explosive situations. Lab Society does not recommend running vacuum traps at or below these temperatures.
Pair with: LS-BTK-4C, LS-BTK-8C, MA-4, MX07H135
Min. Temperature: 32C
Heating Mantles: 1050w, 9 amps, 115V
Max. System Temperature: 260C (PTFE/PFA Temp. Limit)
Stirring Motor: 29w, 0.22 amps, 130V
Speed Range: 100-1850 rpm
Vacuum Monitoring: 15W, 100-120V
Range: 0.7 mTorr to 800 Torr
Heating Mantles: CSA / NRTL
Controllers: RoHS / CE / NRTL (Constructed with 100% UL and CSA listed parts)
Stirrer: CE / CSA / NRTL
Vacuum Gauge: RoHS / CE / NRTL
Glassware: Meets ASTM specification E438, Type 1, Class A, and is made from Kimble Kimax or Schott Duran glass
LS Distilling Head (2)
Glass Immersion Thermometer for Head (2)
LS Distribution Adapter (2)
250ML Receiving Flask (2)
500ML Receiving Flask (2)
1000ML Receiving Flask (4)
5L Three Neck Round Bottom Flask
5L Specific Stopper
5L Heating Mantle System
5L Top Heating Mantle
Dual Output Temperature Controller
Lab Stand (3)
Retort Clamps (2)
Lab Jack 8 x 8 in. (2)
Chain-link RBF Tool w/ Adapter
Submersible Water Pumps (2)
All Hoses and Connectors
