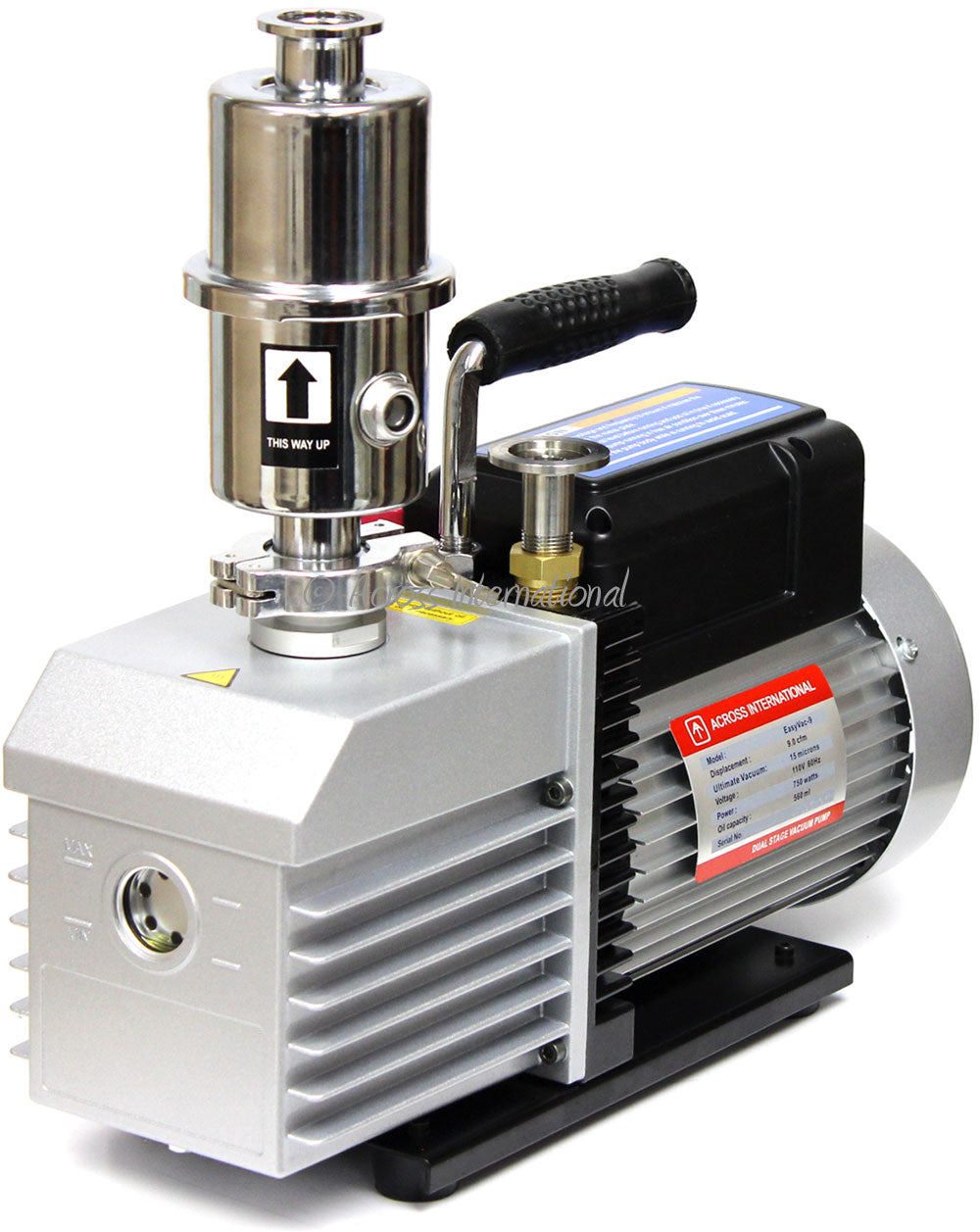

Ai EasyVac 9 cfm 2-Stage Vacuum Pump with Mist Filter UL/CSA/CE

Our EasyVac 9 CFM vacuum pumps are now 110V/220V 50/60Hz switchable and UL, CSA and CE certified.

Ai EV9 are dual-stage high speed sliding-vane rotary compact vacuum pump with KF25 vacuum connector. Comes with all necessary fittings and a exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run. It is important to note that pumps should always be ran in a well ventilated area.

Free KF25 flexible stainless steel bellow (3.3 ft), clamps and centering rings set ($219 value) included.

Specifications

 Electrical requirements
 110V/220V 50/60Hz switchable, single phase 750 watts (1 HP)
 Pumping rate
 9 cfm (110V 60Hz), 8 cfm (220V 50/60Hz)
 Vacuum level
 15 micron/millitorr
 Vacuum connection  KF25/NW25 flange
 Exhaust filter connection
 KF25/NW25 flange
 Oil volume
 560 ml / 0.6 quart
 Motor rate  1720 rpm
 Working temperature  -5 to 60°C
 Pump dimensions (LxWxH)
 16.5 x 6 x 11", height is 16" with exhaust filter
 Shipping dimensions (LxWxH)
 20 x 9 x 13"
 Pump weight
 37 Lb
 Shipping weight
 41 Lb
 Recommended oil  Ultragrade 19
 Compliance
 UL, CSA, CE
 Warranty  One year
 Download  Product brochure
